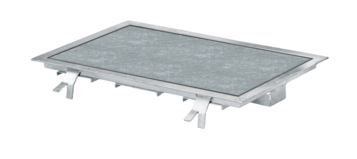

As part of the test lane, the ST 600 measures toe values on the front and rear axles at drive-over speeds of up to 15 km/h.
Compatible with the following Beissbarth passenger car brake testers:
- BD 6xx: In conjunction with the 8kN analog display with LCD screen or ScreenLane PC software
- BD 4xxx: In conjunction with the 8kN analog display with LCD screen or ICPerform PC software
- QB.4: Only in conjunction with the App
- Side slip tester ST 600 V3.0
- Mounting set
| Operating temperature | -10 - 50 °C |
|---|---|
| Storage temperature | -10 - 50 °C |
| Gross weight | 40 kg |
| Length | 750 mm |
| Height | 47 mm |
| Width | 440 mm |
| Weight | 30 kg |
| Packing | 815 x 675 x 280 mm |
| Max. axle load testable | 2000 kg |
| Measuring range | +/- 20 mm/m |
| Relative humidity max. | 85 |
| Max. drive-over load | 4000 kg |
| Operating temperature | -10 - 50 °C |
|---|---|
| Storage temperature | -10 - 50 °C |
| Gross weight | 40 kg |
| Length | 750 mm |
| Height | 47 mm |
| Width | 440 mm |
| Weight | 30 kg |
| Packing | 815 x 675 x 280 mm |
|---|---|
| Max. axle load testable | 2000 kg |
| Measuring range | +/- 20 mm/m |
| Relative humidity max. | 85 |
| Max. drive-over load | 4000 kg |
-
Installation frame for side slip tester ST 600 1691632000 1691632000
-
Installation Frame | ST 600 1691632000 1691632000
